Pressure-locked stair treads –

Floor gratings

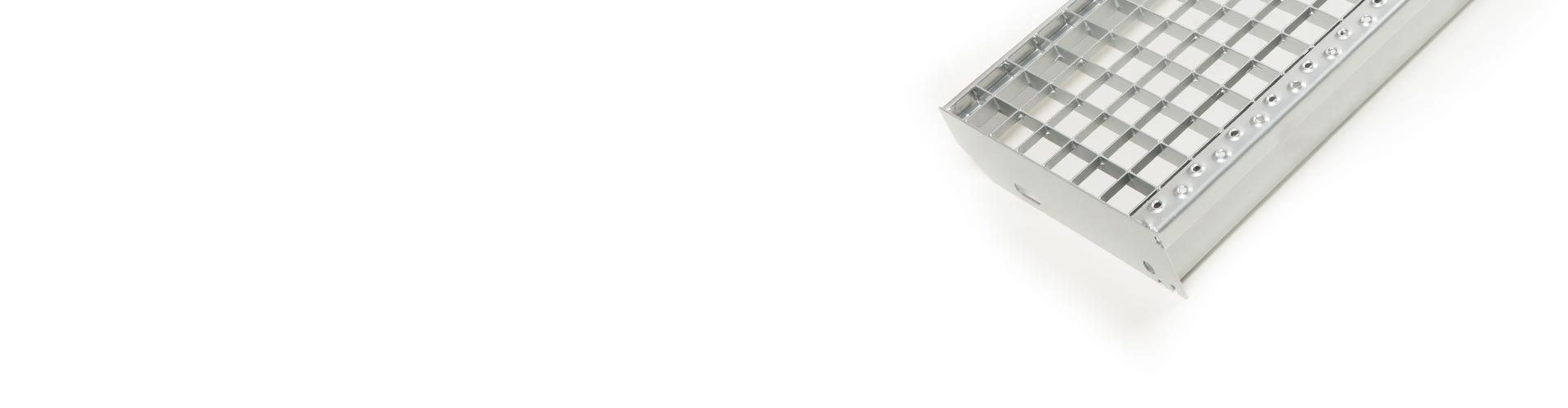

Stair treads consist of a pressure-locked grating furnished with a non-slip stepping edge (nosing) that makes walking up/down the stairs comfortable and safe. Side plates with holes make assembly to the support structure (stringers) easy. In combination with our pressure-locked gratings they will meet even the most demanding requirements.

Stair treads are made according to DIN 24531.1 standard

Display products in our online shop >

Application in
  • Mechanical engineering
  • Civil engineering
  • Car industry
  • Food industry
  • Electrotechnical industry
  • Agriculture
  • Chemical industry

raw treads, without any surface finish
hot-dip galvanised
stainless steel

Standard mesh sizes

33 x 33 mm | 33 x 16.5 mm | 33 x 11 mm

Do you need different meshes?

Load-bearing bar thickness

Load-bearing bar thicknesses range from 30 x 2 mm to 40 x 3 mm.

Do you need a different load-bearing bar thickness?


The tread side plates are furnished with round and oval holes to accommodate M12 screws to fix the tread onto its support structure of the staircase. Each tread is fastened by 4 screws.

Technical conditions of deliveries

Commonly produced items are designed for technical purposes.  Technical delivery conditions are based on our experience with deliveries of perforated materials. Please, read them. They will help you understand some important details that are necessary for selecting a particular material and its proper use.

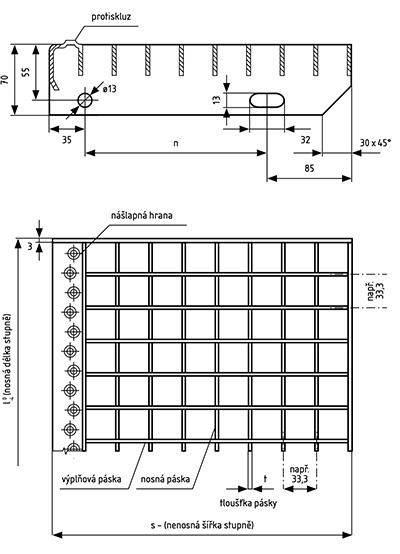

l – tread length
s – tread width
h – height of the load-bearing bar
t – thickness of the load-bearing bar
n – axial spacing of the holes for screws

Custom production

Your specific requirements present no obstacle for us. After mutual consultations we are able to meet your requirements and tailor-make materials for you.

Do you have any specific requirements as to the material?


Would you like to know what perforated materials look like in real life? Would you like to know the differences? Do you need assistance in finding the best material for your project?

Download our catalogue of products, ask for sample materials or come in person to see them at any of our sales points.

Consult us

How to select perforated material correctly? What to look at?

Do you ask yourself similar questions? We have helped many clients choose the right material. We will be happy to assist you and answer your questions in respect to perforated materials. Feel free to consult us and ask about anything. We will guide you throughout the process of selecting materials up to executing your projects.

You may turn directly to our salespeople to ask about availability of materials.

Custom production

Do our products attract you but you would need to adjust them to suit your project?

Decide about the dimensions, material or shade of the surface finish to your liking and we will fabricate the selected perforated material to suit you. We have a great variety of production tools to help us readily accommodate to all your requirements. If none of our tools is good for you, we will make a new one in our tool shop as needed.
